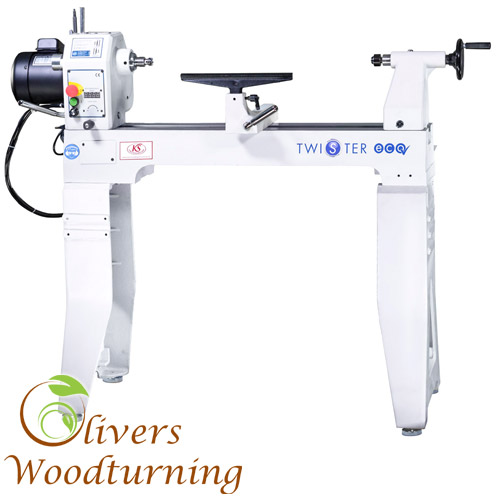

Twister ECO Woodturning Lathe

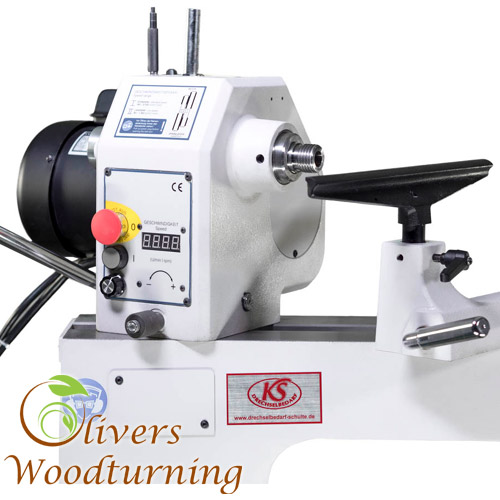

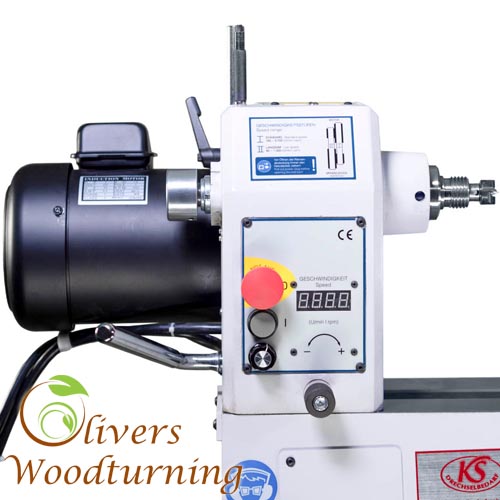

The Twister ECO Woodturning Lathe has it’s controls mounted in the head, this reduces cost to give it an advantage over the competition without compromising any other aspect. It is compatible with the swing away system and bed extension as used by the Stratos 230 lathe.

• Spindle Bearings Distance: 190 mm
• Weight: 165 kg
• Toolrest Post Diameter: 1″ / 25,4 mm
• Spindle Head: Rotatable, Movable
• Manufacturer: Drechselbedarf K. Schulte
• Tailstock Taper: 2MT
• Headstock Spindle Taper: 2MT
• Headstock Spindle Thread : M33 x 3.5mm
• Manufacturers Warranty : 5 Years
• Control Box: Fixed Position
• Speeds: 80-1350 / 180-3700
• Power Supply: 230 V
• Swing Over Bed: 400 mm
• Centre Height with Bed Ex: 300 mm
• Engine: 1,5 kW / 2 HP (230 V)
• Centre height: 200 mm
• Between Centres: 720 mm
• Dimensions: L x W x H: 1390 x 500 x 1250 mm

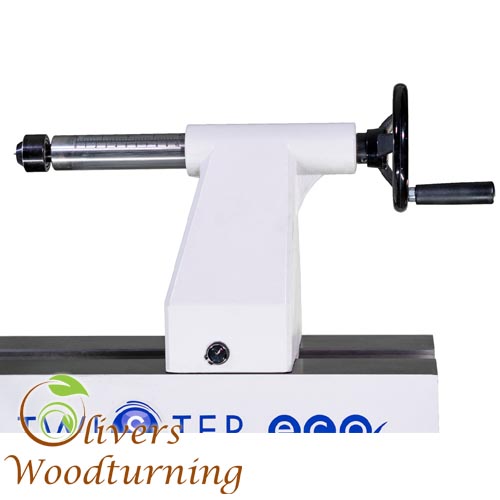

• Tail Stock Stroke: 100 mm
